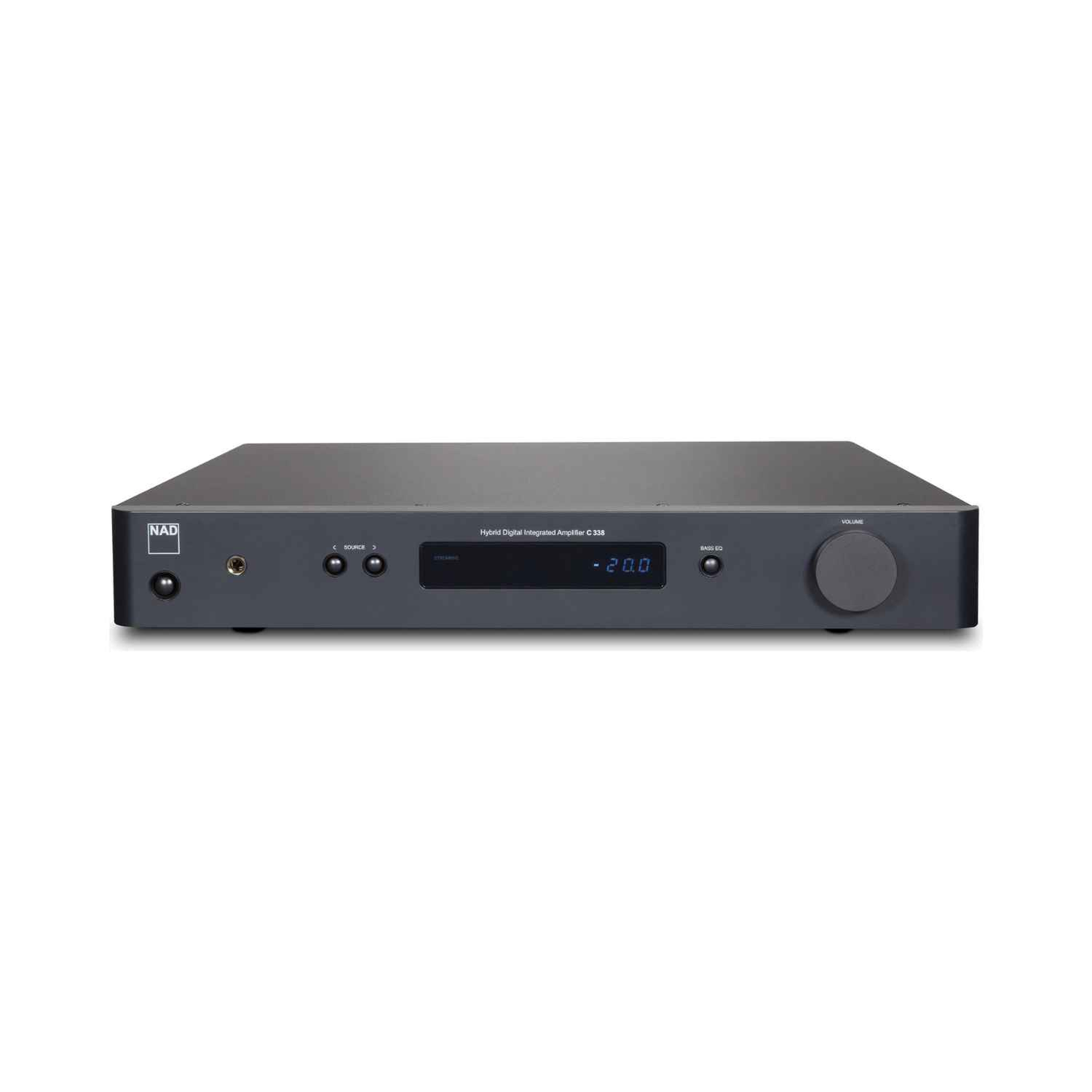

NAD C368 Hybrid Digital DAC Amplifier

FEATURES:
80W x 2 Continuous power into 8 or 4 Ohms
Bluetooth A2DP with aptX supported
MM Phono input
Analogue line inputs
SPDIF coax and optical inputs
Speaker A, Speaker B
Stereo or Bridge mode configuration
Preamp/Subwoofer out
Headphone amplifier
MDC Slots for future upgrades
IR Remote
Smartphone Control App
12V Trigger in/out
IR in/out
RS-232 Serial port for control
Control4, Crestron, RTI, URC, AMX, Savant, Elan certified

PREAMPLIFIER:
Line Input, Pre Out:
THD (20Hz-20kHz): <0.005% at 2V out
Signal/Noise Ratio: >106dB (IHF; A-weighted, ref. 500mV out, unity gain)
Channel Separation: >80dB (1kHz); >70dB (10kHz)
Input Impedance (R and C): 22 kilohm + 100pF
Maximum Input Signal: >4.5Vrms (ref. 0.1% THD)
Output Impedance: Source Z + 240 Ohm
Input Sensitivity: 93mV (ref. 500mV out, Volume maximum)
Frequency Response: ±0.03dB (20Hz-20kHz)
Maximum voltage output - IHF load: >4.5V (ref. 0.1% THD)
Tone Controls:
Treble: ±7.0dB at 20kHz
Bass: ±7.0dB at 60Hz
Balance: -10dB

Phono Input, Pre Out:
THD (20Hz-20kHz): <0.01% at 2V out
Signal to Noise Ratio:
>84dB (200 Ohm source; A-weighted, ref. 500mV out)
>76dB (MM cartridge source, IHF; A-weighted, ref. 500mV out)
Input Sensitivity: 1.44mV (ref. 500mV out, Volume maximum)
Frequency Response: ±0.3dB (20Hz-20kHz)
Maximum Input Signal at 1kHz: >80mVrms (ref. 0.1% THD)

Line Input, Headphone Out:
THD (20Hz-20kHz): <0.005% at 1V out
Signal/Noise Ratio: >110dB (32 Ohm loads; A-weighted, ref. 2V out, unity gain)
Frequency Response: ±0.3dB (20Hz-20kHz)
Channel Separation: >60dB at 1kHz
Output Impedance: 6 Ohms

GENERAL:
Continuous output Power into 4 Ohms and 8 Ohms (Stereo): >80W (ref. 20-20kHz at rated THD, both channels driven)
Continuous Output Power into 8 Ohms (Bridge Mode): 300W (at 20-20kHz at THD 0.03%)
THD (20Hz-20kHz): <0.03% (250mW to 80W, 8 Ohms and 4 Ohms)
Signal to Noise Ratio: >98dB (A-weighted, 500mV input, ref. 1W out in 8 Ohms)
Clipping Power: >95W (at 1kHz 0.1% THD)
Clipping Power (Bridge Mode): >315W (at 1kHz 0.1% THD)
IHF Dynamic Power:
8 Ohm 120W
4 Ohm 200W
2 Ohm 250W
IHF Dynamic Power (Bridge Mode):
8 Ohms 500W
4 Ohms 560W
Peak Output Current: >20A (in 1 Ohm, 1ms)
Damping Factor: >300 (ref. 8 Ohms, 20Hz and 6.5kHz)
Frequency Response: ±0.3dB (20Hz-20kHz)
Channel Separation:
>75dB (1kHz)
>70dB (10kHz)
Input Sensitivity (for 80W in 8 Ohm): Line In: 470mV; Digital In: 21% FS
Sample Rate: up to 24 bit/192kHz
Frequency Band: 2.402G-2.480G
Maximum Transmit Power (dBm): 7dBm ±2dBm

POWER CONSUMPTION:
at Auto Standby ON and Network Standby OFF: 0.5 Watts*
at Auto Standby ON and Network Standby ON: 1.2 Watts**
OFF mode (Power switched OFF): 0.1 Watts
* - After 20 minutes of no user interface interaction and no active source input.
** - With established wireless Bluetooth connectivity and 20 minutes of no user interface interaction and no active source input.

WEIGHT & DIMENSIONS:
Gross Dimensions (W x H x D)*: 435 x 100 x 390mm (17 1/8 x 3 15/16 x 15 3/8)"
Net Weight:7.8kg (17.2lb)
*Gross dimensions include feet, extended buttons and rear panel terminals.

ACCESSORIES:
U.S Power Cord
SR, HTR Remote
AA Batteries
