NAD Electronics

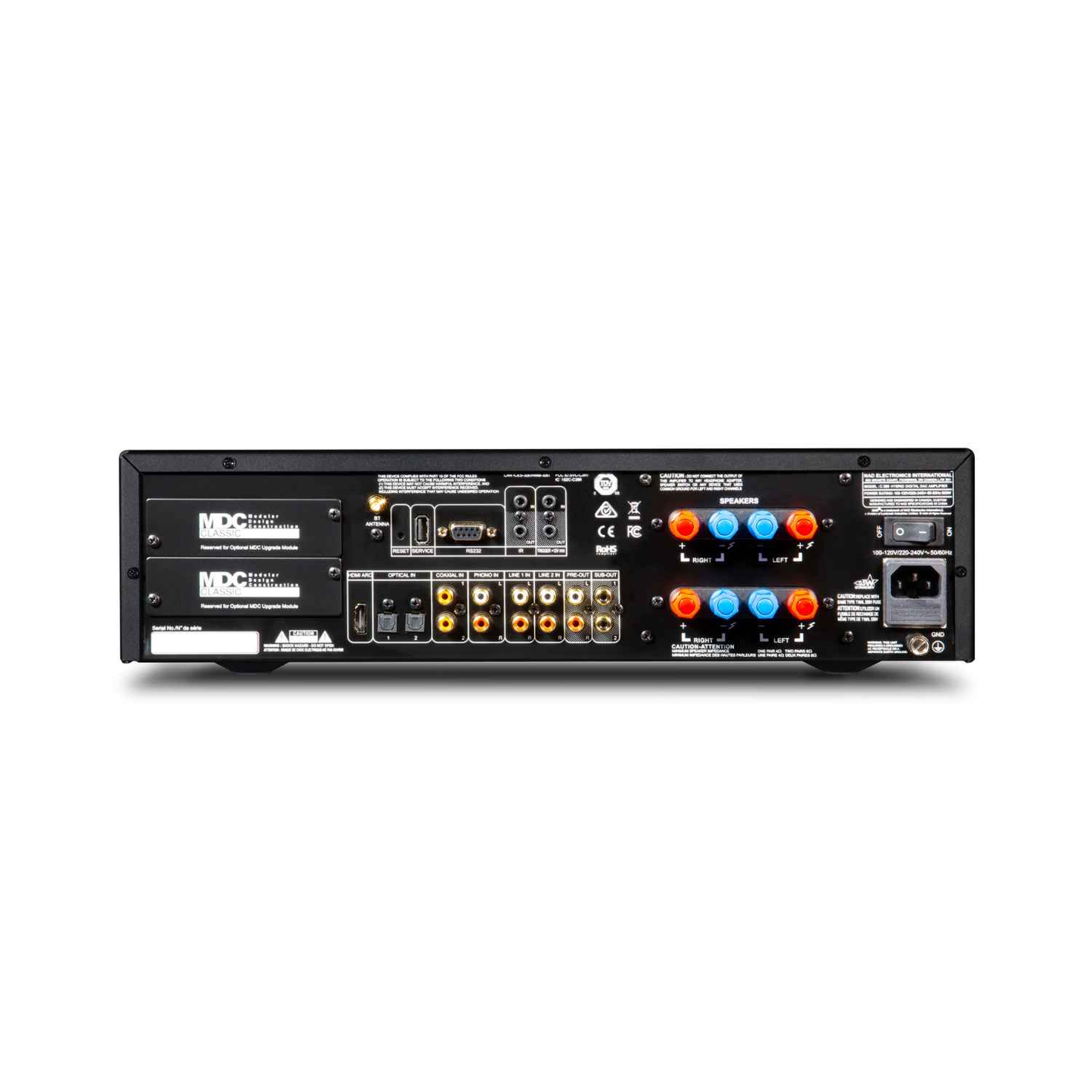

NAD C399 Hybrid Digital DAC Amplifier

NAD C399 Hybrid Digital DAC Amplifier

Regular price $2,899.00 CAD
Regular price $2,899.00 CAD Sale price $2,899.00 CAD
Long Weekend Sale Contact for Pricing
This item ships FREE across Canada!

Special Order

  • Free Shipping
  • Low Price Guarantee
  • Certified Warranty

As the new flagship of NAD’s Classic series of integrated amps, the C 399 HybridDigital DAC Amplifier takes NAD’s commitment to lasting value and sonic excellence to a whole new level.

The C 399 employs NAD’s Hypex HybridDigital nCore amplifier circuitry, which until now has been available only on Masters Series amplifiers. Its digital section is built around a 32-bit/384kHz ESS Sabre DAC, the same chip used in NAD’s acclaimed M10 and M33 Masters Series amplifiers.

The C 399 is the first amplifier to incorporate the latest generation of NAD’s Modular Design Construction (MDC) technology. MDC2 lets users add optional modules that provide functions such as BluOS multi-room music streaming and Dirac Live room correction.

Technical Specifications

LINE INPUT, PRE-OUT (ANALOG BYPASS ON)
-THD (20Hz – 20kHz): <0.002% at 2V out
-Signal-to-Noise Ratio: >106dB (IHF; A-weighted, ref. 500mV out, unity gain)
-Channel separation: >100dB (1 kHz), >90 dB (10 kHz)
-Input Impedance (R and C): 56 kohms + 100 pF
-Maximum input signal: >4.6Vrms (ref. 0.1% THD)
-Output impedance Source: Z + 320 Ohm
-Input sensitivity: 65mV (ref. 500mV out, Volume maximum)
Frequency response ±0.3dB (20Hz – 20kHz)
Maximum voltage output -IHF load >5V (ref. 0.1% THD)

PHONO INPUT, PRE-OUT (ANALOG BYPASS ON)
-THD (20Hz – 20kHz): <0.01% at 2V out
-Signal-to-Noise Ratio: >84dB (200 Ohm source; A-weighted, ref. 500mV out)
-Input sensitivity: 1.08mV (ref. 500mV out, Volume maximum)
-Frequency response: ±0.3dB (20Hz – 20kHz)
-Maximum input signal at 1kHz: >80mVrms (ref. 0.1% THD)

LINE INPUT, HEADPHONE OUT (ANALOG BYPASS ON)
-THD (20Hz – 20kHz): <0.005% at 1V out
-Signal-to-Noise Ratio: >107dB (32 Ohms loads; A-WTD, ref. 2V out, unity gain)
-Frequency response: ±0.3dB (20Hz – 20kHz)
-Channel separation: >62dB at 1kHz
-Output impedance: 2.2 Ohms

LINE IN, SPEAKER OUT (ANALOG BYPASS ON)
-Continuous output power into 8 ohms and 4 ohms: 180W (ref. 20 Hz-20 kHz at rated THD, both channels driven)
-THD (20 Hz – 20 kHz): <0.02% (250 mW to 180 W, 8 ohms and 4 ohms)
-Signal-to-Noise Ratio: >95 dB (A-weighted, 500 mV input, ref. 1 W out in 8 ohms)
-Clipping power: >210W (at 1 kHz 0.1 % THD)
-IHF dynamic power: 8 ohms: 217 W, 4 ohms: 400 W, 2 ohms: 506.4 W
-Peak output current: >26 A (in 1 ohm, 1 ms)
-Damping factor: >150 (ref. 8 ohms, 20Hz to 6.5kHz)
-Frequency response: ±0.3 dB (20 Hz – 20 kHz)
-Channel separation: >90dB (1 kHz), >75dB (10 kHz)
-Input sensitivity: (for 180 W in 8 ohms) Line In: 201 mV, Digital In: 10.25% FS

GENERAL SPECIFICATIONS
-Supports bit rate/sample rate: up to 24 bit/192 kHz
-Frequency band: 2.402G- 2.480G
-Maximum transmit power (dBm): 7 dBm ± 2 dBm

DIMENSIONS AND WEIGHT
-Gross dimensions (W x H x D): ** 435 x 120 x 390mm (17 1/8 x 4 3/4 x 15 3/8)”
-Net Weight: 11.2kg (24.7lb)
-Shipping weight: 13.6kg (30lb)

Features

HybridDigital nCore Amplifier
• Continuous Power: 180 Watts per channel into
8/4 ohms
• Instantaneous Power: 250 Watts per channel
• Vanishingly low harmonic and intermodulation
distortion
• Dual MDC2 Ports for expanded functionality
• Optional MDC2 BluOS-D module adds BluOS
Hi-Res multi-room music streaming and Dirac
Live room correction
• Jitter-free 32-bit/384kHz ESS Sabre DAC
• Ultra-low-noise MM phono stage with
infrasonic filtering circuitry
• Two optical, two coaxial digital input
• HDMI eARC input
• Two pairs of line-level analogue inputs with
low-noise buffer amplifier
• Speaker A/Speaker B output
• Two-way Qualcomm aptX HD Bluetooth
• Dual subwoofer output
• Dedicated headphone amplifier
• CI-Friendly – IR remote, 12V Trigger in/out, IR
in/out, RS-232 Serial port
• Seamless integrations with smart home
control systems such as Control4, Crestron,
RTI, URC, Push, Lutron, iPort, and Elan
