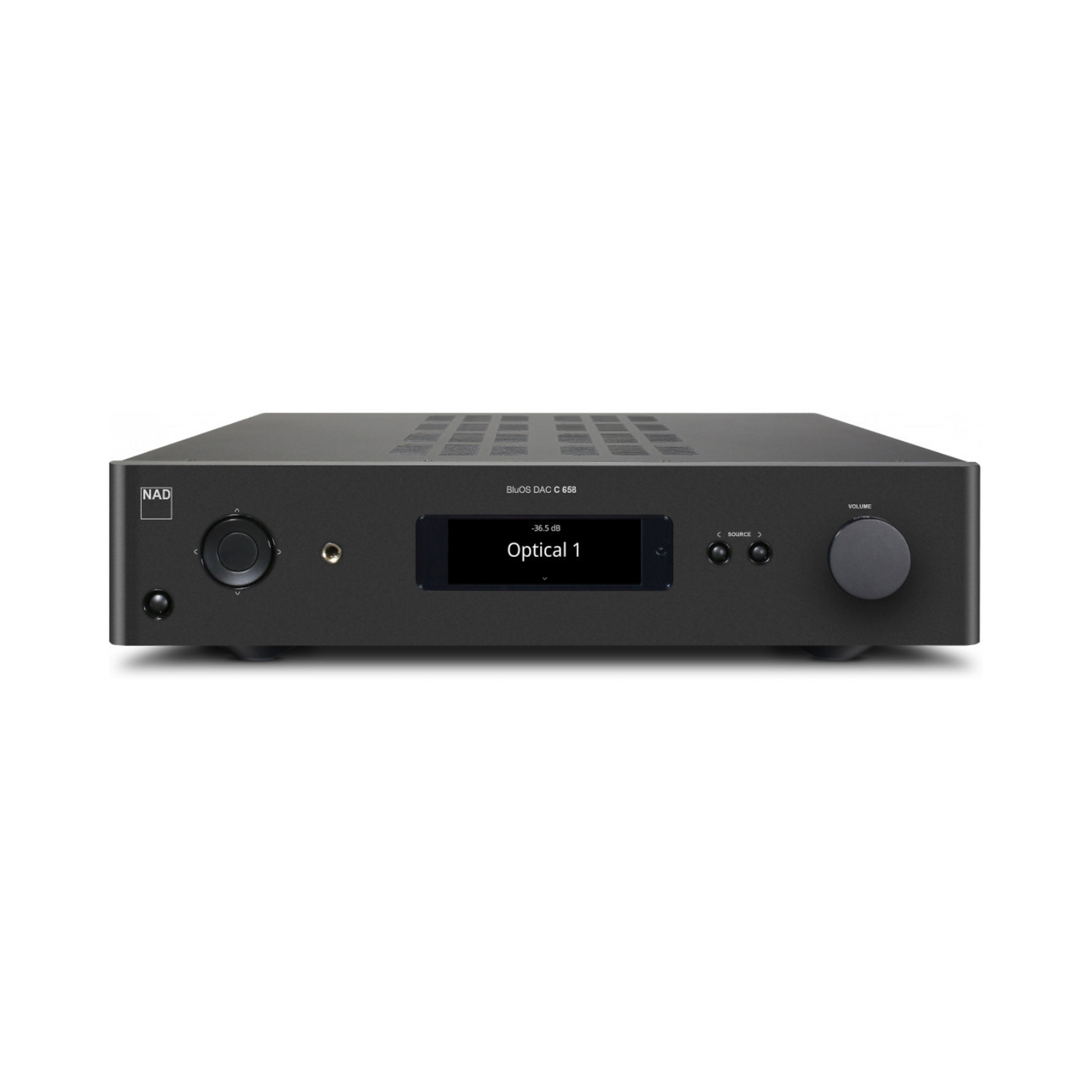

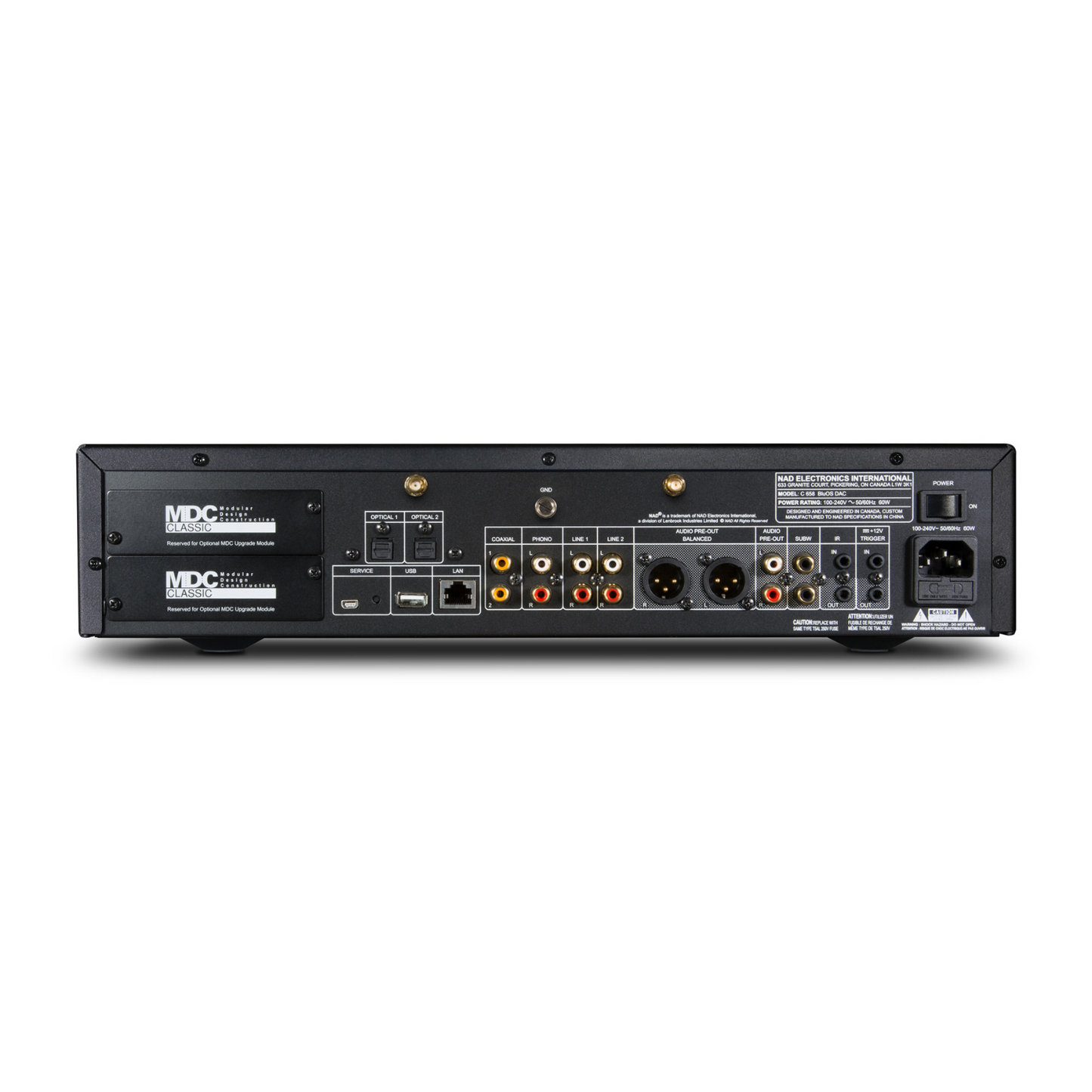

NAD C658 BluOS Streaming DAC

LINE INPUT, PRE-OUT:
THD (20Hz - 20kHz): <0.005% at 2V out
Signal-to-Noise Ratio: >106dB (IHF; A-weighted, ref. 500mV out, unity gain)
Channel separation:
>80dB (1kHz)
>70dB (10kHz)
Input impedance (R and C): 22 kohms + 100pF
Maximum input signal: >4.5Vrms (ref. 0.1% THD)
Output impedance: Source Z + 240 Ohm
Input sensitivity: 93mV (ref. 500mV out, Volume maximum)
Frequency response: ±0.3dB (20Hz - 20kHz)
Maximum voltage output - IHF load: >4.5V (ref. 0.1% THD)
Tone Controls Treble:
>±7.0dB at 20kHz; Bass: ±7.0dB at 60Hz;
Balance: -10dB

PHONO INPUT, AUDIO PRE-OUT:
THD (20Hz - 20kHz): <0.01% at 2V out
Signal-to-Noise Ratio:
>84dB (200 Ohm source; A-weighted, ref. 500mV out)
>76dB (MM cartridge source, IHF; A-weighted, ref. 500mV out)
Input sensitivity: 1.44mV (ref. 500mV out, Volume maximum)
Frequency response: >±0.3dB (20Hz - 20kHz)
Maximum input signal at 1kHz: >80mVrms (ref. 0.1% THD)

LINE INPUT, HEADPHONE OUT:
THD (20Hz - 20kHz): <0.005% at 1V out
Signal-to-Noise Ratio: >110dB (32 Ohms loads; A-WTD, ref. 2V out, unity gain)
Frequency response: >±0.3dB (20Hz - 20kHz)
Channel separation: >>60dB at 1kHz
Output impedance: 6 Ohms
DAC:
Supported audio file formats: MP3, AAC, WMA, OGG, WMA-L, ALAC, OPUS
High resolution audio formats: MQA, FLAC, WAV, AIFF, Supports converted DSD playback via the BluOS desktop app (only)
Native sampling rates: up to 32bit/192kHz
Bit depths: 16 - 24

BLUOS:
Supported operating systems: Plays music from network shares on the following desktop operating systems: Microsoft Windows XP, 2000, Vista, 7, 8 to current Windows Operating Systems and Mac OS X versions
User interface mobile operating system: luOS - Free Android and iOS App available online at Google Play and Apple App store
Supported cloud services: Spotify, Amazon Music, TIDAL, Deezer, Qobuz, HDTracks, HighResAudio, Murfie, JUKE, Napster, Slacker Radio, KKBox, Bugs
Free internet radio: TuneIn Radio, iHeartRadio, Calm Radio, Radio Paradise
Bluetooth quality: Bluetooth aptX HD wireless built-in
Bluetooth connectivity: Two-Way (Transmit and Receive)
Bluetooth connectivity: Two-Way (Transmit and Receive)
Network connectivity:
Gigabit Ethernet RJ45
WiFi 5 (802.11 ac/n)

DIMENSIONS AND WEIGHT:
Dimensions (W x H x D): 435 x 100 x 405mm (17 1/8 x 3 15/16 x 16)
