NAD CS1 Endpoint Network Streamer

AUDIO:
THD + N (20 Hz - 20 kHz): <0.03% 20-20 kHz -1dBFS output
Signal-to-Noise ratio: -94dB (ref 2V)
Frequency response: 20-20 kHz +/-0.3dB; 50 kHz -3dB
Native sampling rate: Up to 192 kHz
Bit depth: 16-24
Supported audio file format: LPCM, MP3, AC3, Ogg Vorbis, HE-AAC, MQA & WMA decode capability
Supported 3rd party service provider: Spotify Connect, Tidal Connect, Apple AirPlay 2, Google Chromecast, DLNA, Roon
DAC: TI PCM5254
Processor: ARM Cortex -A53, Quad-Core, 1.5GHz per core

CONNECTIONS:
Power:
AC adapter
Input: 100-240V AC 0.3A
Output: 5V DC 1A
Network connectivity:
Ethernet RJ45 100 Mbps
Wi-Fi 5 (802.11ac 2.4GHz/5 GHz)
DLNA/UPnp*
Bluetooth:
Bluetooth 5.0
BT Profiles: A2DP 1.2, AVRCP 1.3, SPP, HFP, HSP, HOGP
NFC: NFC for easy Bluetooth connection

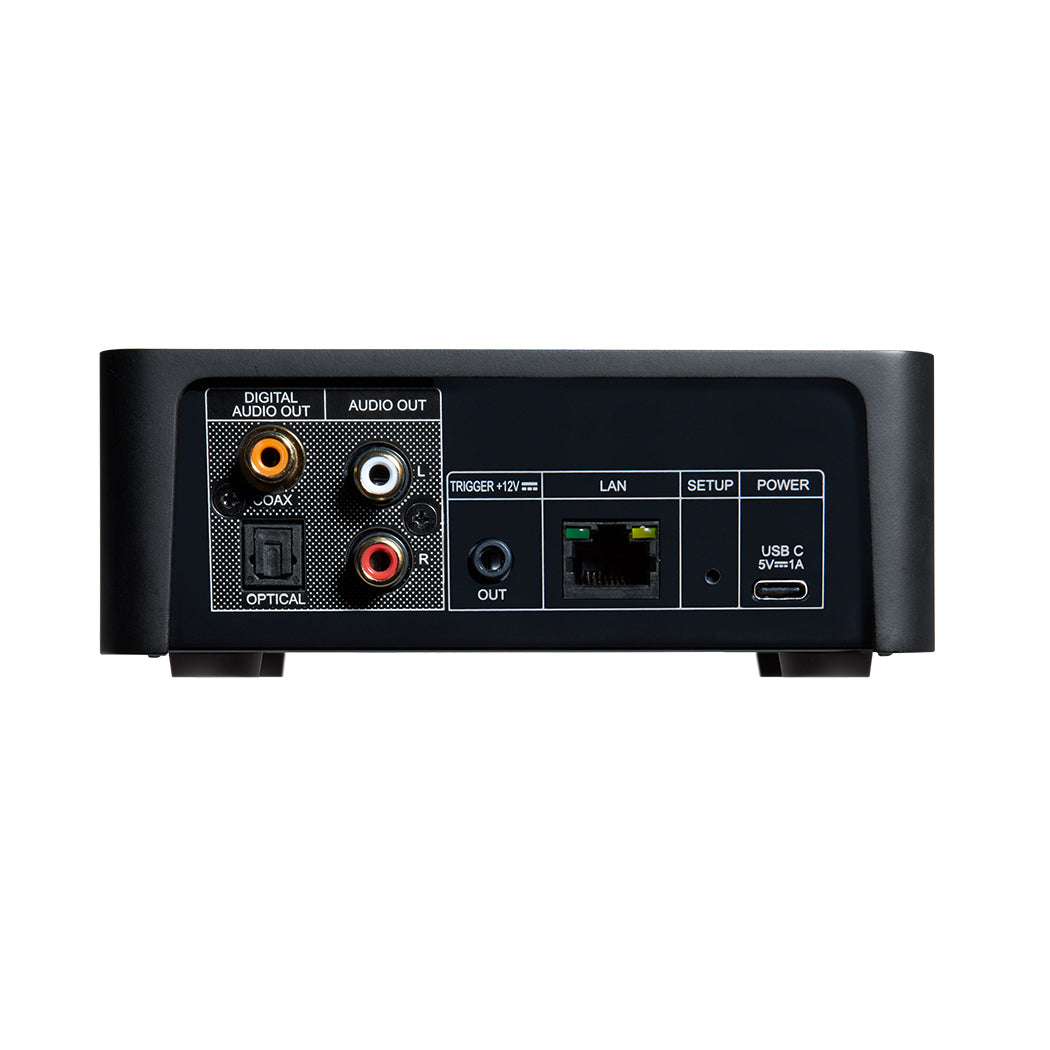

12V Trigger Out: 3.5mm Mini-jack x 1
Analog Out: RCA x 1
Coaxial Out: RCA 75 ohms
Optical Out: TOSLINK x 1
USB IN: USB C for AC adapter

GENERAL:

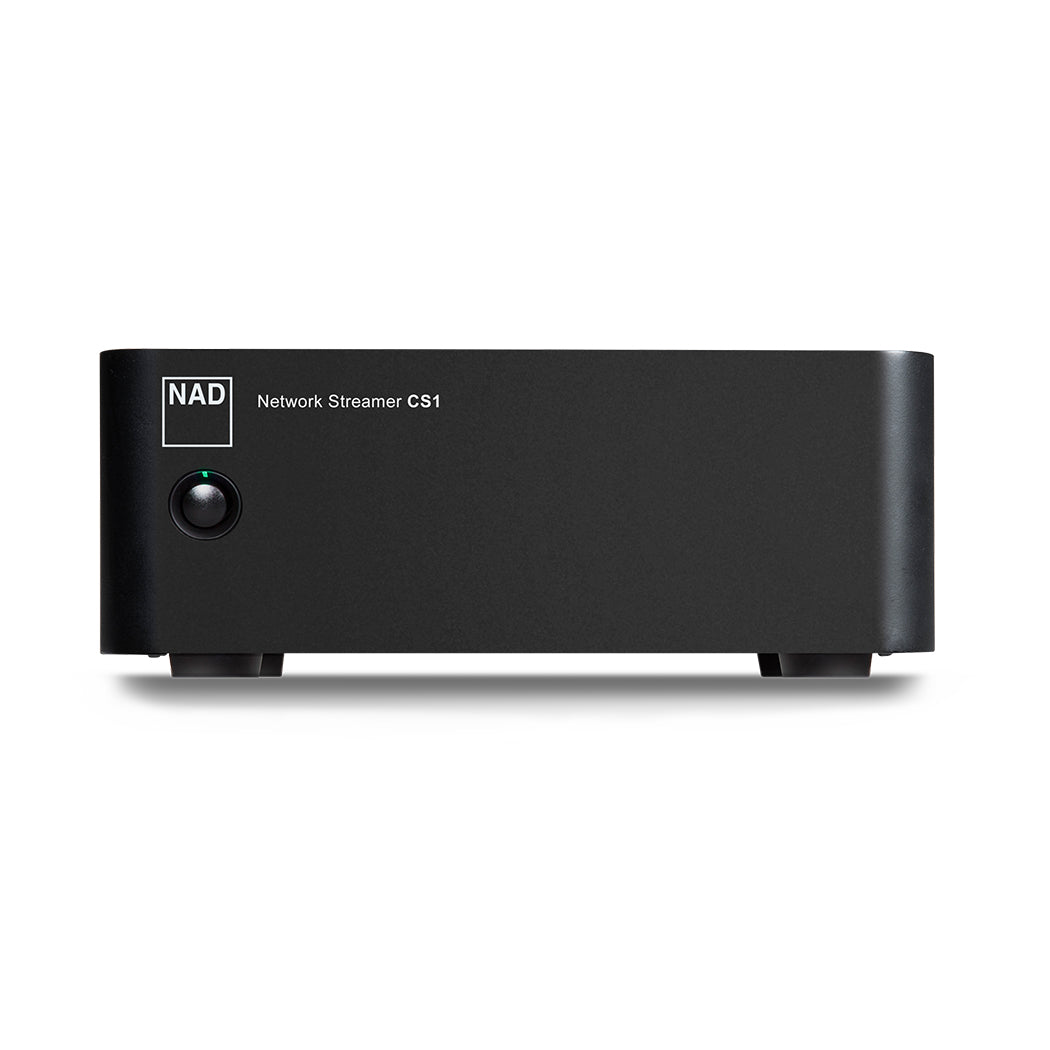

Status Indicator: Front Panel LED
Function Button: Front Panel Function Button
Power Consumption: 0.5W Network Standby
Finish: Black

DIMENSION AND WEIGHT:
Gross dimensions (W x H x D)**: 140 x 140 x 55 mm (5 1/2 x 5 1/2 x 2 1/16 inches)
Net Weight: 1.5 kgs / 3.3 lbs
