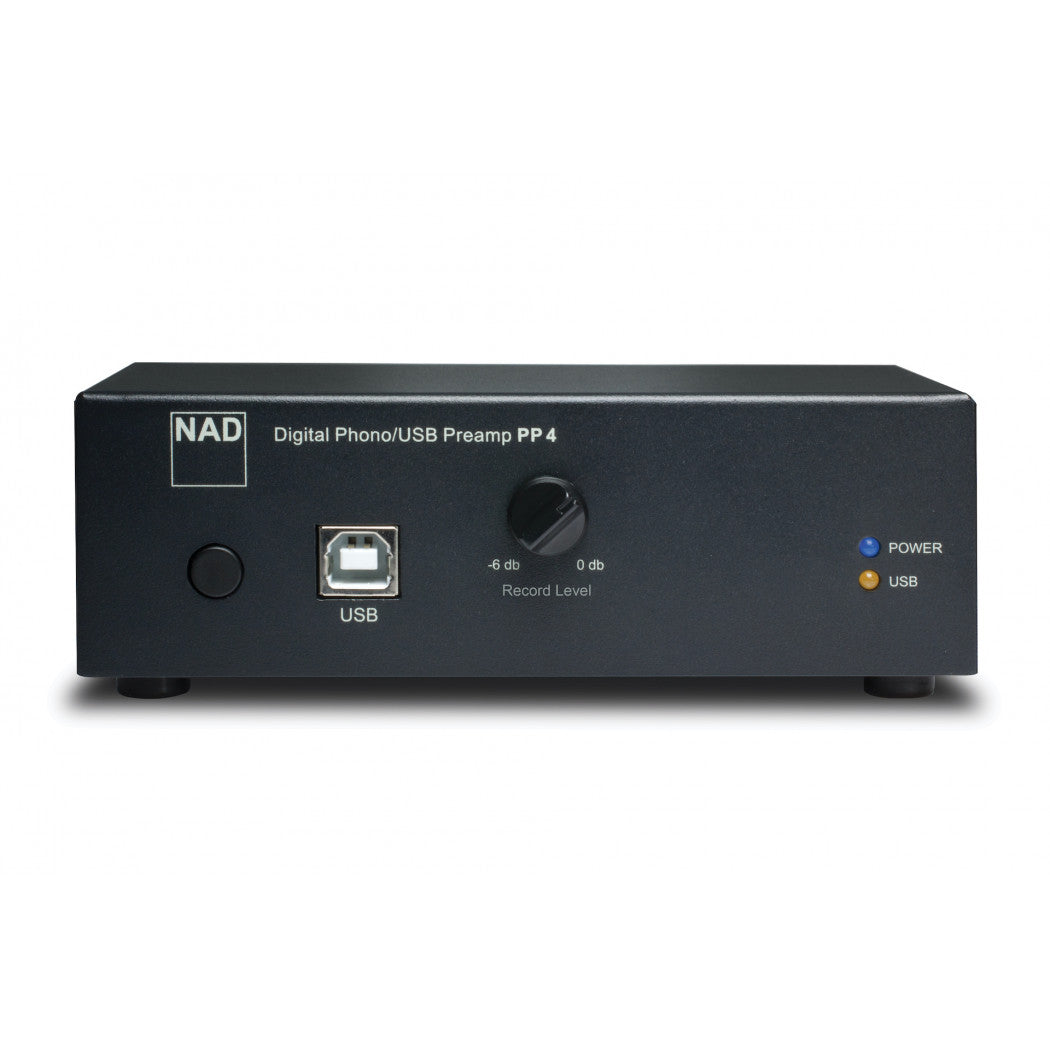

NAD PP4 Digital Phono USB Preamplifier

NAD PP4 Digital Phono USB Preamplifier

Regular price $379.00 CAD
Regular price $379.00 CAD Sale price $379.00 CAD
Father's Day Sale Contact for Pricing
This item ships FREE across Canada!

Special Order

  • Free Shipping
  • Low Price Guarantee
  • Certified Warranty

With the addition of the PP 4 to your home system, the LPs you cherish the most come alive in the form of expansive and rich sound. Offering superb and measured sonic performance, NAD combines two simple solutions – the PP 4 Digital Phono and the USB Preamplifier – into one small device, making it easy to add phono to stereo amplifiers and AV receivers without a phono input. The PP 4 uses a shielded USB cable and recording level control, which reduces noise and improves the analogue-to-digital conversion process. As part of NAD’s commitment to the environment, the PP 4 features a more efficient “green” power supply that reduces power consumption. It also has an Auto Power Down feature that saves energy by shutting off when not in use.


Features & Specifications

MC:
Input Impedance (R and C): 100 Ohm + 180pF
Gain at 1kHz: 58dB
Input Sensitivity (ref. 200mV output): 0.38mV
Signal to noise (A weighted, with cartridge connected): 78dB
Input Overload (20Hz/1kHz/20kHz): 0.65/6.5/60mV
Rated Distortion (THD 20Hz - 20kHz): <0.03%
RIAA response accuracy: ±0.3dB
Infrasonic filter:
-14dB (5Hz)
-3dB (10Hz)
Digital output (USB): 16 bit linear PCM
Sampling frequency: 48kHz
Dynamic range: 86dB

MM:
Input Impedance (R and C): 47 kilohm + 200pF
Gain at 1kHz: 35dB
Input Sensitivity (ref. 200mV output): 5mV
Signal to noise (A weighted, with cartridge connected): 76dB
Input Overload (20Hz/1kHz/20kHz): 10/100/900mV
Rated Distortion (THD 20Hz - 20kHz): <0.03%
RIAA Response Accuracy: ±0.3dB
Infrasonic filter:
-14dB (5Hz)
-3dB (10Hz)
Digital output (USB): 16 bit linear PCM
Sampling frequency: 48kHz
Dynamic range: 89dB
Record Level: 0dB to -6dB
Gross Dimensions excl. Power supply (W x H x D):
135 x 49 x 72mm
5 5/16 x 1 15/16 x 2 7/8"

LINE IN:
Input Impedance (R and C): 47 kilohm + 180pF
Rated Distortion (THD 20Hz - 20kHz): <0.008%
Output Impedance: -115dB
Maximum Output Level: 5.3V

LINE OUT:
Output Impedance: 100 Ohm
Maximum Output Level: 5.3V
